Horizontal Boring & CNC Horizontal Boring

Technox Machine & Manufacturing Inc. is an industry-leading provider of large part machining services. We’re committed to offering unparalleled customer service, ensuring the utmost part quality, and achieving outstanding accuracy in our machining processes. Our superior horizontal boring capabilities ensure timely, accurate, high-quality components on every order.



Horizontal Boring

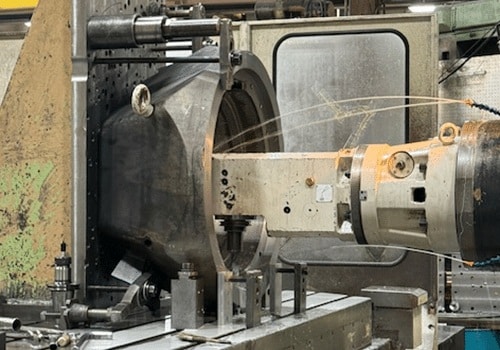

Our high-tech facility houses a vast array of large horizontal boring machines with a max 120” x 152” x 70” work envelope and 5-axis capacity, giving us the ability to machine very complex parts at high speeds while maintaining precision ± 0.0005” tolerances. With our 15-ton lifting cranes, we can also manage very large parts.



Capable of working with many different materials from standard metals to high-performance alloys and engineering plastics, we possess the skills and equipment to execute a variety of different machining processes. Our quality management program focuses on systematically ensuring that our processes and products are the best they can be. Carefully controlled and supervised testing and inspection procedures ensure that each customer requirement and expectation is always met or exceeded.

Boring machines allow operators to achieve precise and demanding tolerances. Boring uses single-part cutting tools to enlarge pre-drilled holes in workpieces. Though similar to turning in many respects, boring is a challenging operation and requires a great deal of expertise to perform the process correctly.

Horizontal Boring Services from Technox infographic


Horizontal vs. Vertical Boring

Horizontal and vertical boring machines are defined by the orientation of their spindles. Horizontal boring mills keep workpieces stationary while tools turn to perform operations. Vertical boring mills utilize turning workpieces while the tools to remain stationary.

Horizontal boring offers more versatility because it accommodates much larger part sizes. There are a number of other benefits, including:

Horizontal Boring Benefits

  • Increased production speed
  • Reduced tool deflection
  • Compatibility with CNC machining

Materials We Work With

Technox machines components out of a wide array of materials. From standard metals to high-performance alloys and engineering plastics, our skills and equipment allow us to work with an expansive portfolio of materials, such as:

Horizontal Boring Materials list

  • Steel
  • Stainless steel
  • Aluminum
  • Brass
  • Copper
  • Bronze
  • Nickel
  • Cast iron
  • Inconel
  • Hastelloy
  • Plastics

Machining Processes

Our facilities and tooling capabilities ensure that we can perform a number of machining processes, including:

  • Boring
  • Milling
  • Drilling
  • Tapping
  • Threading
  • Counterboring
  • Countersinking
  • Knurling
  • Broaching
  • Pocketing
  • Profiling
  • Reaming
  • Parting/cutting
  • Facing
  • Gear Hobbing

Horizontal Boring Services from Technox

The benefit of our extra-large work envelope combined with our outstanding accuracies and responsive customer service brings unmatched value to our horizontal boring services. We have been in business since 1976 and our customer base spans a diverse range of demanding industries, including oil & gas, fluid power, steel mills, and equipment and machinery builders. For more information, request a quote today.


Horizontal Boring & CNC Horizontal Boring Capabilities

Machining Processes

Boring Milling Drilling Tapping Threading Counterboring Countersinking Knurling
Broaching Pocketing Profiling Reaming Parting/Cutting Facing Gear Hobbing Spline

Equipment

Manual Boring Machines CNC Horizontal Boring Centers

Machinery Axis & Spindle

Machinery Axis: 5 Spindle: 5 in

Materials (Metals)

Steel Stainless Steel Aluminum Brass Copper Bronze
Nickel Cast Iron Inconel® Hastelloy® Plastics

Finishes

Prime Painting Powder Coating
Plating Black Oxide Anodizing

Part Length, Width, Height & Weight

Part Length: Up to 120 in Part Width: Up to 152 in Part Height: Up to 70 in Part Weight: Up to 15 Ton (Crane)

Tolerance

± .0005 in

Testing

Hardness Dye Penetrant (Leak) Surface Finish

Documentation

Inspection Reports

Additional Services

Assembly & Kitting Welding
Repair Custom Packaged

Production Volume

Prototype to Medium Runs
